To provide access to current hydrometeorological data and warnings to the general public, a dedicated portal has been implemented:
https://stlucia.mydewetra.cimafoundation.org/hydromet_portal/
The public portal can be also accessed from the dashboard of myDewetra, using the dedicate icon.
¶ Overview

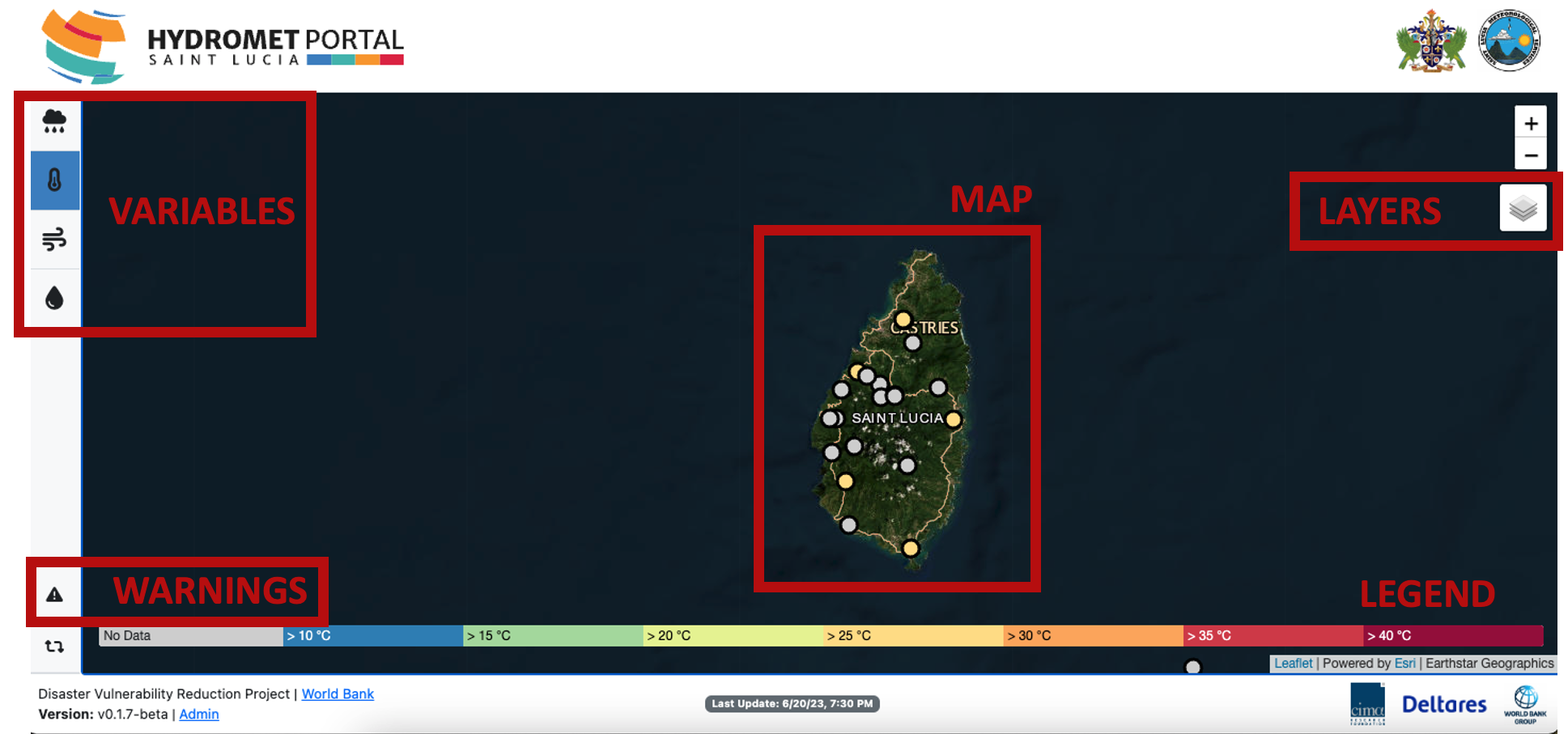

The public portal has 5 main components, specifically:
- Variable selection (Rainfall, Temperature, Wind, Water Level)
- Map
- Legend
- Feed
- Additional layers
By selecting a variable on the left side, map and legend will automatically update. Record points are coloured according the the last available level, also shown by mouse-over.
¶ Accessing the observations

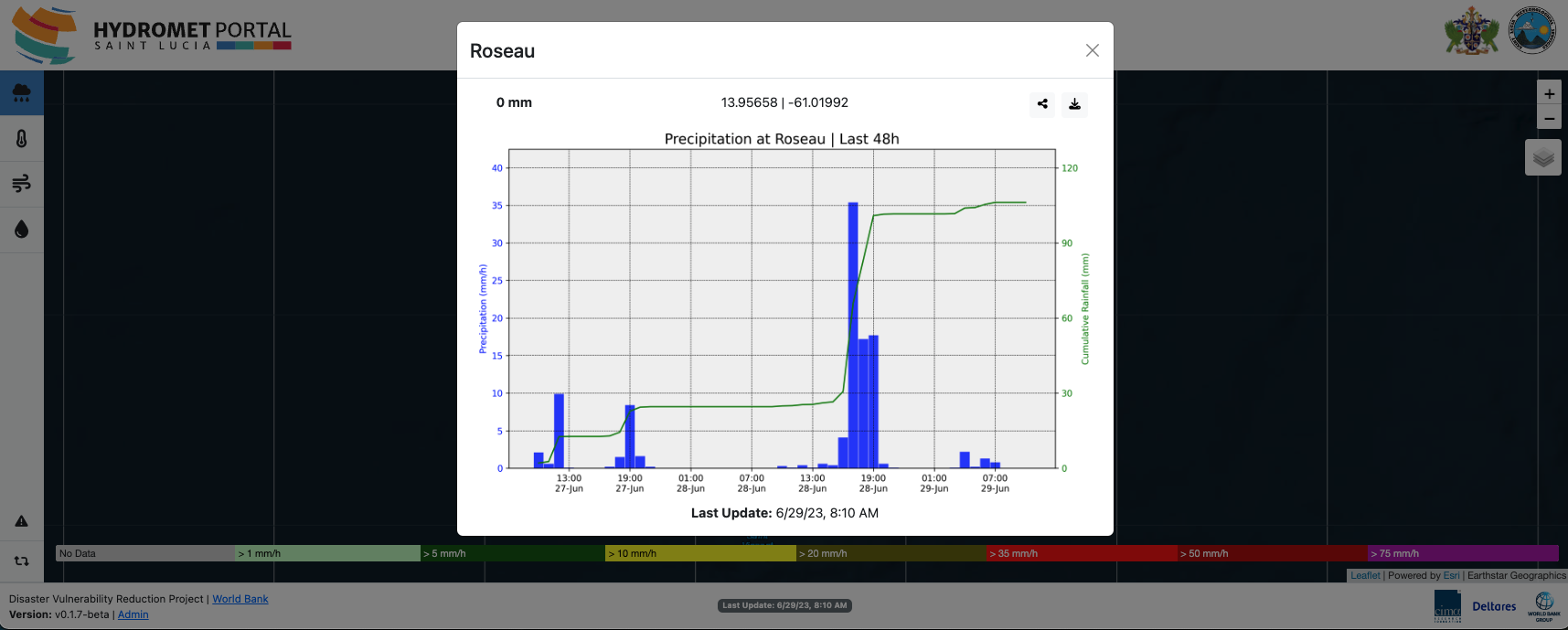

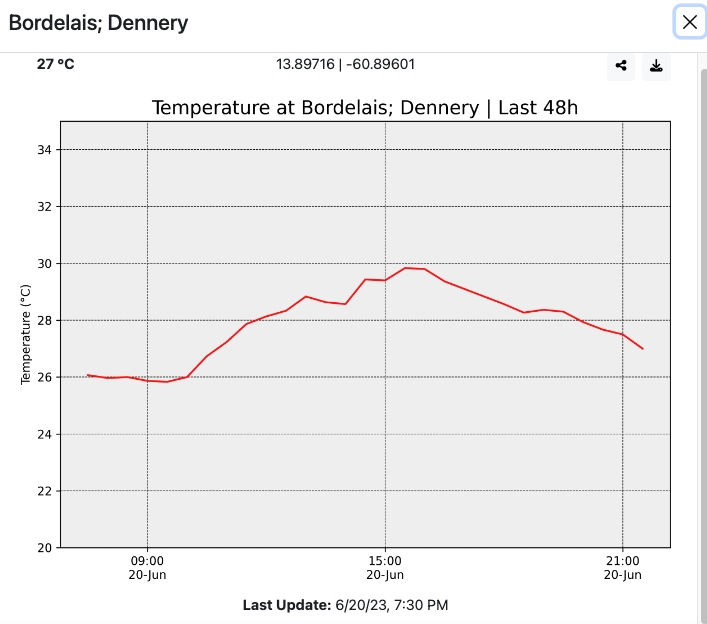

By clicking on a specific record point, the plot showing the last 48h observations appears.

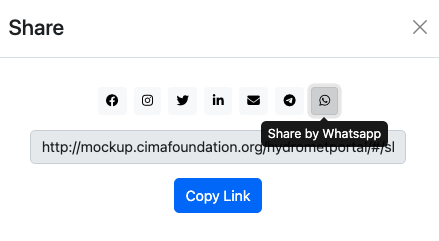

By clicking on the dedicated icon on the top-right corner, plots can be shared on multiple channels and data can be downloaded as csv table.
¶ Warning and document feed

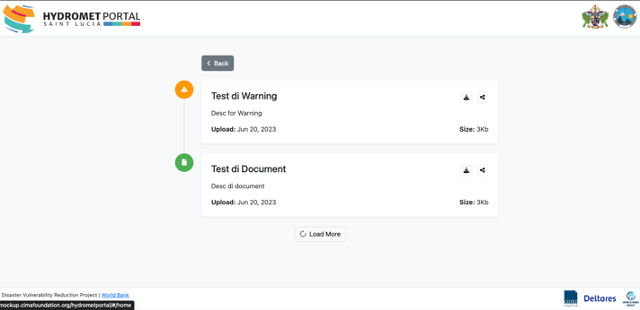

The public portal has a dedicated page to share latest warnings and documents, called “feed”. The page can be accessed clicking on the “warning triangle” icon on the left corner.
Warnings are displayed with an orange triangle while documents as a green page. Both should be uploaded as PDF files.
